UI/UX Showcase

UX Designer   |   Solo project   |   Unreal Engine 5

WHAT DID I DO?

  • Created User Stories for my target persona:

    • Tank in an MMO party

    • Identified Primary, Secondary, & Tertiary info


  • Wireframed my ideas in Figma

    • UI screens (and flow between them)

    • Title screen & startup sequence

    • HUD elements


  • Prototyped an Enhanced Input combo system

    • This served as a foundation for a gameplay arc, which has Setup, Climax, and Resolution


  • Created VFX with Niagara Systems

    • Playtested qualitative & quantitative VFX


  • Implemented HUD elements

    • Generative UI (flexible UI made through code parameters)

    • Widget Animations for Signifiers & Feedback



Feedback Arc: series of feedback that increases in intensity alongside engagement levels

PLANNING

Confluence Screenshot.png

I created User Stories to represent the desires of my target audience and guide design decisions

​

  • Primary Stories define primary information

    • "As a Tank, I want to know who my enemies are attacking so that I can protect them."


  • These guide my UX decisions in development; I treat the stories as checklist requirements



User Stories for a Tank, made in Confluence

In Figma, I wireframed my ideas to quickly make prototypes to see how they work together

​​

  • Frames and Layers let me craft a HUD and see how it looks over a gameplay screenshot

    • Components make it easy to iterate


  • As I iterate, I add text notes near my frames as notes to myself during implementation

Figma Screenshot.png



An early wireframe of the HUD when combat starts

UX ITERATION: FEEDBACK ARC



Climax: An ultimate attack that ends combat

I created a Feedback Arc for an encounter, showcasing a Setup, a Climax, and a Resolution.

​

  • I used UE's Enhanced Input System to prototype a basic combo attack system


  • I make a Setup phase to create and enforce expectations for players

    • VFX particles appear after input


  • A Climax is a convergence of all feedback

    • VFX particles disappear and spawn a lot of VFX + new feedback (camera shake)


  • Resolutions fade out climactic feedback and foreshadow the next feedback arc

    • In a full game, this could be the end of one combat encounter

I used Niagara Systems to prototype VFX, learning  how to talk with VFX artists on my team.


  • Pendulum,

  • Vector Field,

  • Burst,

  • Blowing Particle

  • Beam emitters

  • Properties of each of these



Multiple directions of Bursts create this explosion effect


Playtesting taught me about qualitative and quantitative changes throughout a feedback arc.


  • Qualitative changes: something new or a drastic change in something familiar

    • communicates a signficant state change

    • like recharging an ultimate ability


  • Quantitative changes: new amount or higher intensity of something familiar

    • signifies incremental progression

    • gaining mana or dealing more damage



Qualitative: The orb gets bigger & gets a trail



Quantitative: Attack feedback changes color & last longer

UI ITERATION: HUD

Using Primary Stories, I define Primary Information


  • Primary Information gets the highest contrast & most involved animations


  • Tanks uniquely care about who enemies are targeting, so I added an icon to show this info


  • I learned generative UI to create Enemy Information on demand and through code

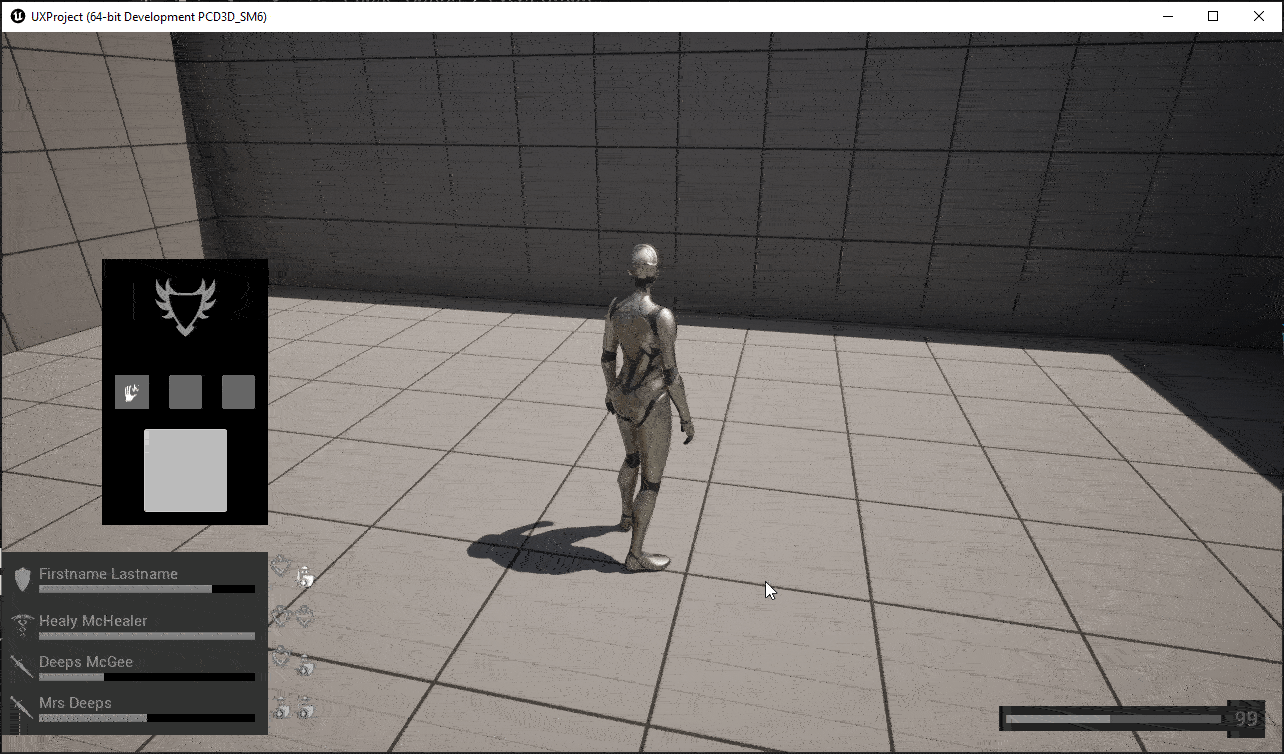

MMO HUD.gif



Animation: Enemy Information appears from the right

Secondary Information varies in importance, so I implement it in a context-sensitive ways.

​

  • A Tank cares about quest progression, but only when determining where to go next


  • Widget Animations draw the player's eye when an objective is completed,

    • Information leaves when it's not important



Animation: Quest progress appears from the top




Pause menu with buttons (left) and preview window (right)

​


Tertiary Information is only important when players determine it is (through input)


  • Pause menus, Inventory, Options, etc.


  • I used Widget Blueprints(WBP) that spawn ​other WBP

    • Window in Pause menu previews information depending on which button is hovered



Blueprints I made to create the preview window

UI ITERATION: MENUS & TITLE

I implement player-focused UI by pairing generative UI and customization

​

  • Generating UI through code allows me to create UI that can be adjusted by users


  • This project taught me about elegance

    • Adding complexity to UI while avoiding overloading the player




Blueprints I use to generate a castbar for each attack




Button assets that inherit from the Widget: "Button"

I took advantage of Inheritance in Widget Blueprints to quickly update and iterate on assets

​​

  • Rapid Prototyping many assets opens up my time for more playtesting


  • Inheritance shortens my iteration time and allows me to easily keep a consistent style​

I created a Title Screen, with a prototype animation to communicate with artists.

​

  • I used the Golden Ratio to place buttons and text on the screen

    • I avoid focal points artists will want to use


  • I used Widget Animations to prototype the game's title startup sequence



Title Sequence prototyped using Widget Animations
